Compression Packing

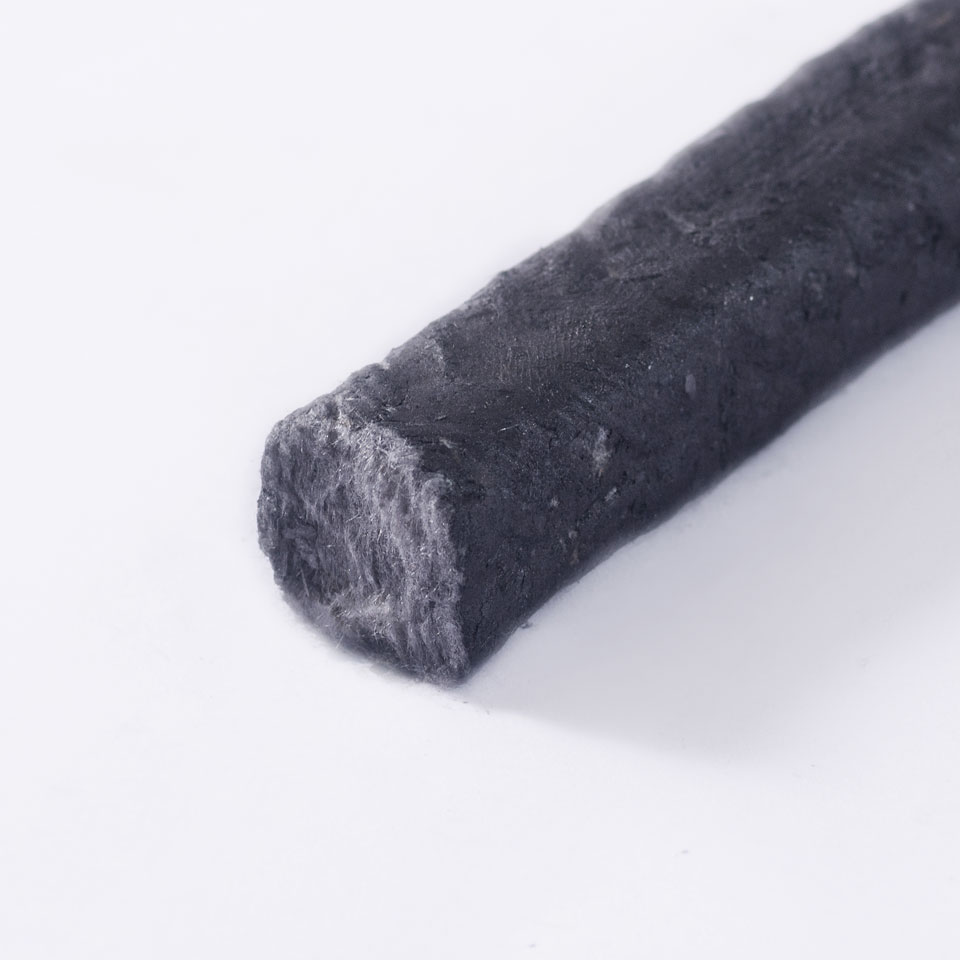

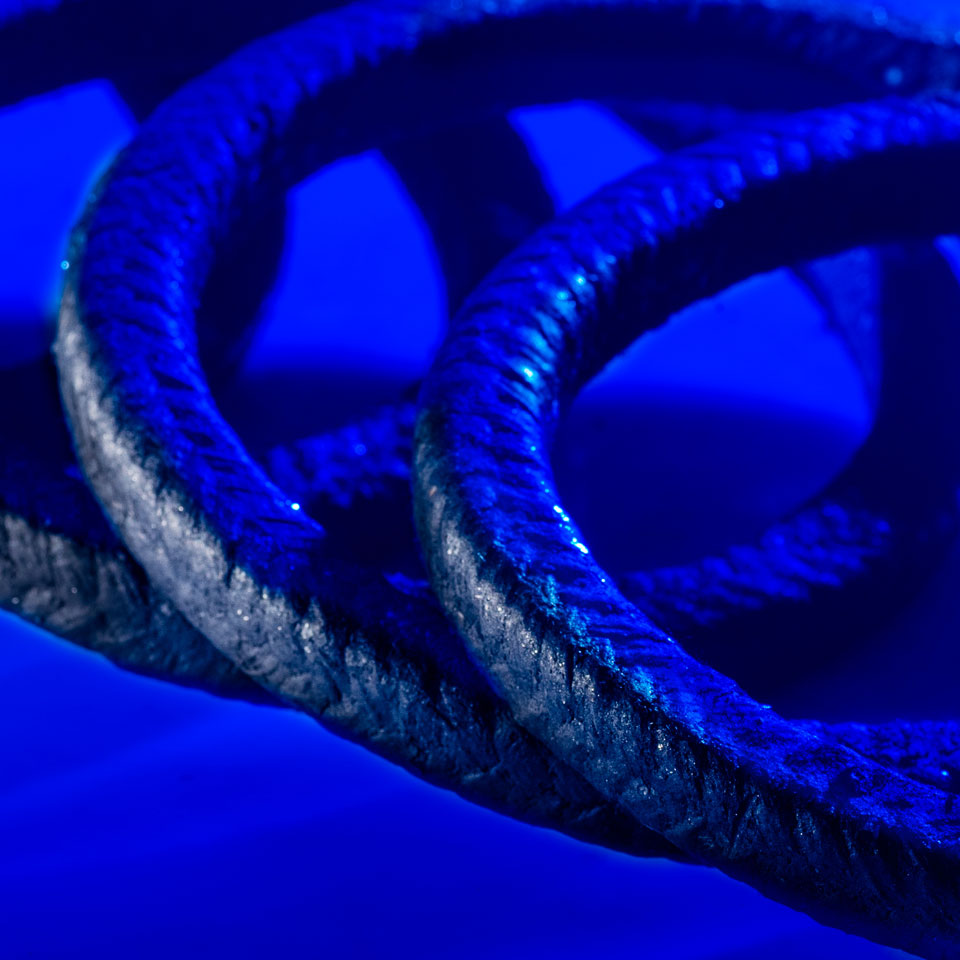

NA 775 - Cotton + Grease + Graphite Braided Packing
A high grade cotton yarn packing impregnated with grease and graphite
- The packing is resilient and flexible
- The ideal packing for rotary pump
The graphite mix impregnation acts as a blocking agent, stopping all gas/liquid penetrations
| Temperature | -20°C to 120°C |
| Pressure | 50 bar (static), 10 bar (rotary) |
| Shaft Speed | 10 m/sec (rotary) |
| pH | 5–10 |
| Applications | Rotary pump, reciprocating pump, domestic fresh water pump |
