Wiping Pads
Pacmaan Wiping Pads - 747WP | 747WPG | 763WP

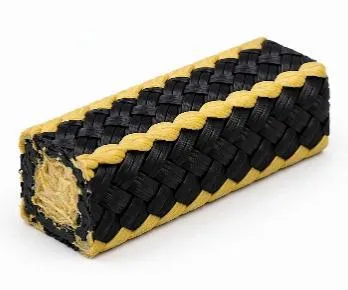

Pacmaan® Wiping Pads are die-pressed rectangular consumable elements for the wire processing industry. Cut from rope to the required length and pressed to shape, these pads are impregnated with a special PTFE impregnation process throughout the cross-section. They deliver consistent, low co-efficient of friction wiping action against zinc, zinc-aluminium alloy and drawing lubricants, with excellent resistance to abrasive media.
Available in the Following Variants Available in custom sizes and other variants on request.
- 747WP - Aramid fibre braided and die pressed, impregnated with PTFE.
- 747WPG - Braided Glass Fibre Core with an external aramid lining, impregnated with PTFE.
- 763WP - Expanded PTFE graphite braided with aramid fibre corners.
Features
- One of the best solutions for abrasive media
- Special PTFE impregnation process to avoid wire scoring and start-up friction
- Low co-efficient of friction
- Interlock braiding for extrusion resistance
- High degree of resiliency and consistency of volume
- Excellent resistance to abrasive media
- Virtually eliminates wire scoring
- Can be used across a wide range of media
Service Conditions
| Temperature | Upto 480 °C |
| pH | 1 to 13 (2 to 13 for 763WP) |
| Wire Speed | 150 m/min (linear, unidirectional motion) |
| Wire Diameter | 0.8 mm to 8.0 mm |
| Coating Weight | 50 g/m2 to 120 g/m2 (galvanizing application) |
| Service Media | Zinc, zinc-aluminium alloy, drawing lubricants and oils. |
| Applications |
|
| Industries Served | Steel wire manufacturing, Copper wire manufacturing, Aluminium wire manufacturing, Wire rope and strand production, Fastener manufacturing, Fencing wire, barbed wire and gabion wire |
