NA 9000 - In-situ Packing

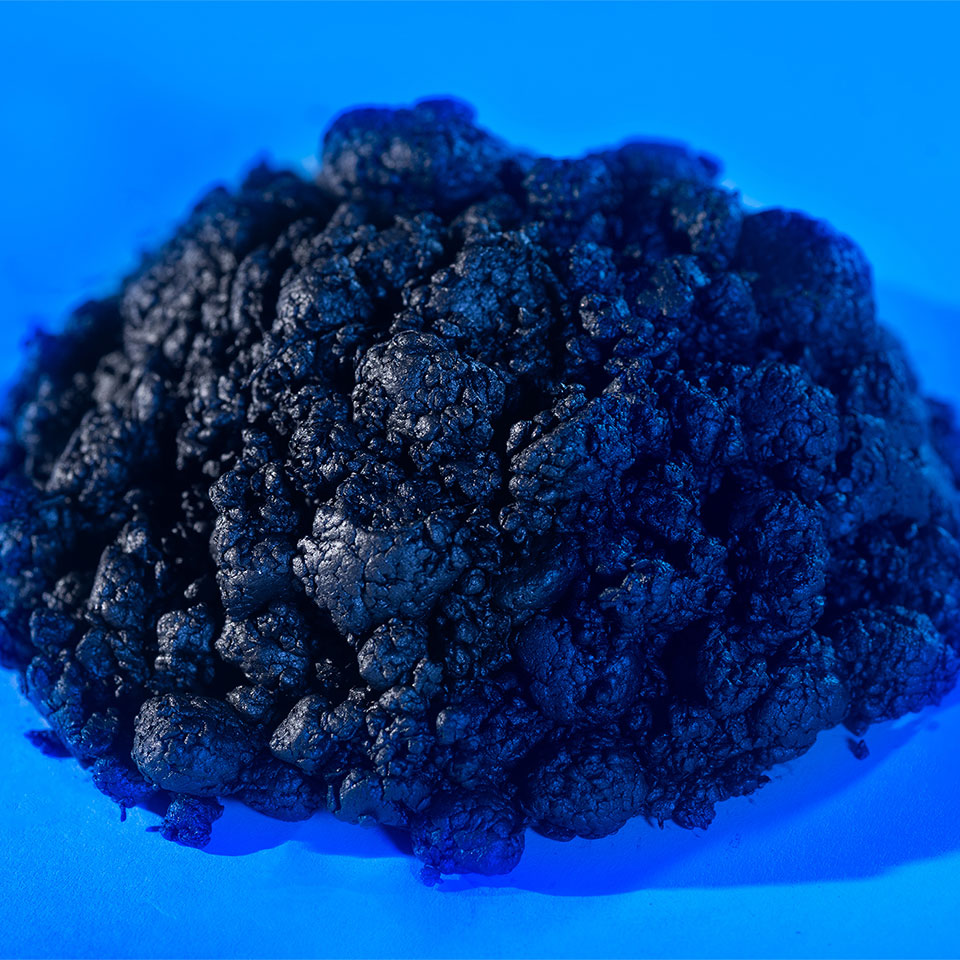

Insupac mouldable type packing for scored sleeves

  • Extremely flexible and malleable ‘mouldable’ type packing that can conform to any shape in the stuffing box, filling all deformities, irregularities and scorings and cutting out all leak paths
  • Excellent chemical resistance, non-scoring and anti-frictional properties—can be used over a wide range of applications
  • Manufactured from self-lubricating materials with excellent heat dissipation properties
  • Provides optimum sealing effect in conjunction with braided gland packings
  • Can be used over a wide range of cross-sections of the stuffing box, eliminating the need to stock various sizes

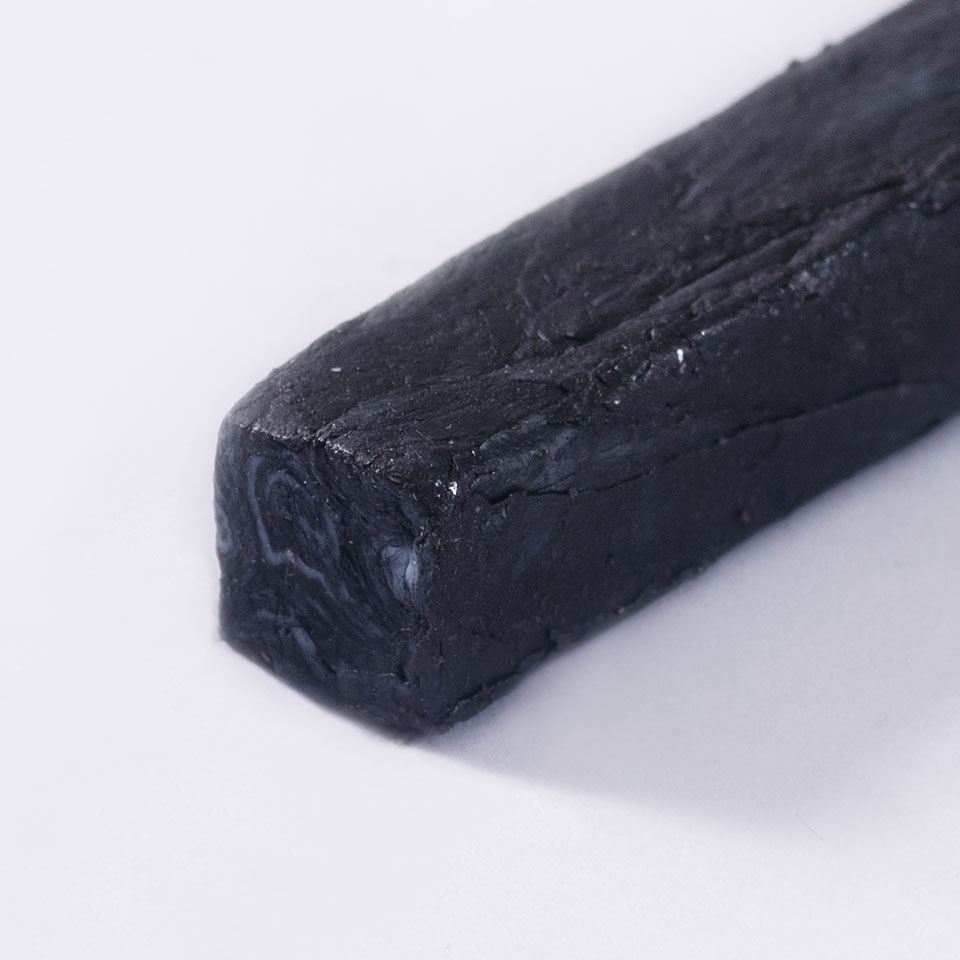

Available in stick form, specific sizes also upon request

Service Media and Conditions Water, sea water, acids and alkalis, oils, slurries, steam, solvents, dyes and chemicals, abrasives etc
Pressure 8 bar (rotary)
Shaft Speed 6 m/sec (rotary)
pH 0 to 14
Applications Stem tubes, rudder posts, dry dock pumps, rotary and reciprocating pumps, mixers, agitators etc
