NA 747FG - Aramid braided packing + PTFE dispersion + Oil (Food Grade)

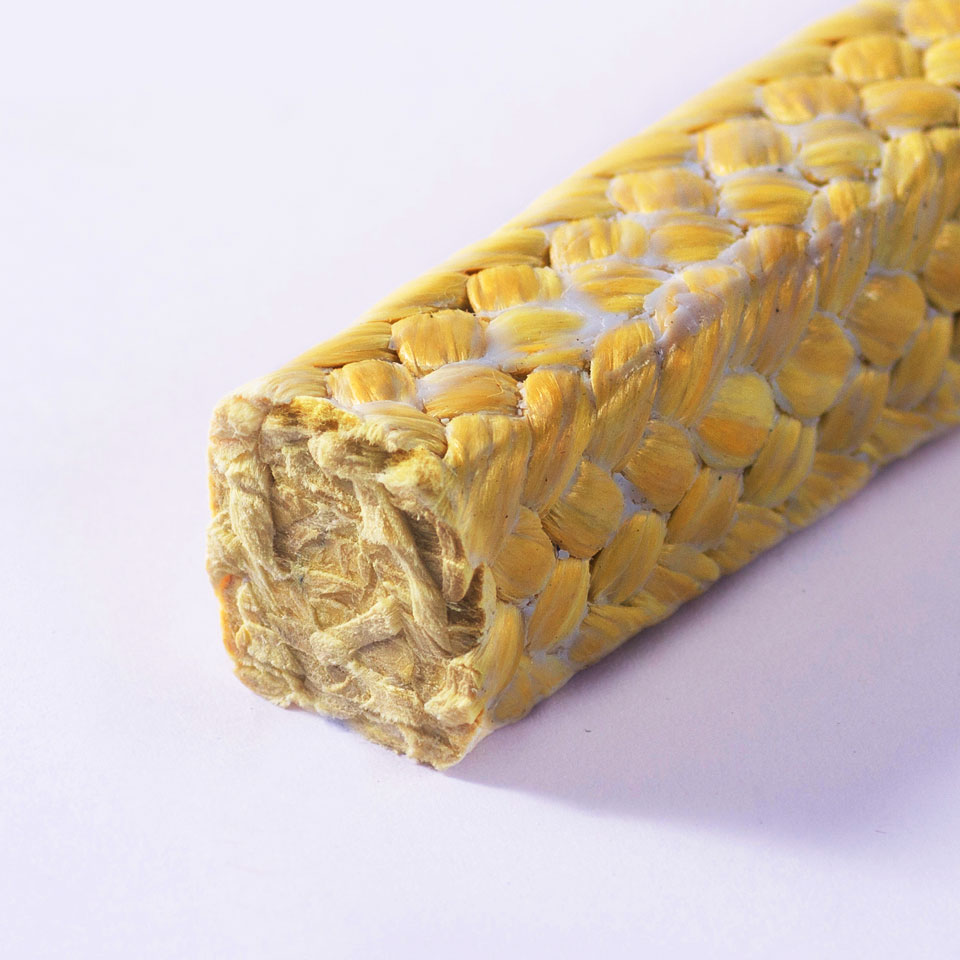

Aramid fibre braided packing impregnated with PTFE

  • One of the best sealing solutions for abrasive media such as stock, juice (sugar), slurries, fly ash, ash slurry etc
  • High degree of resiliency and consistency of volume
  • Special PTFE impregnation process to avoid shaft erosion and start up friction
  • Interlock braiding for high pressure and extrusion resistance
  • Shaft/sleeve hardness should be > 45 HRC: If not, please consult us
  • Food Grade certified as per Commission Regulation (EU) No 10/2011 of 14 January 2011 and Article 3 of European Regulation No. 1935/2004

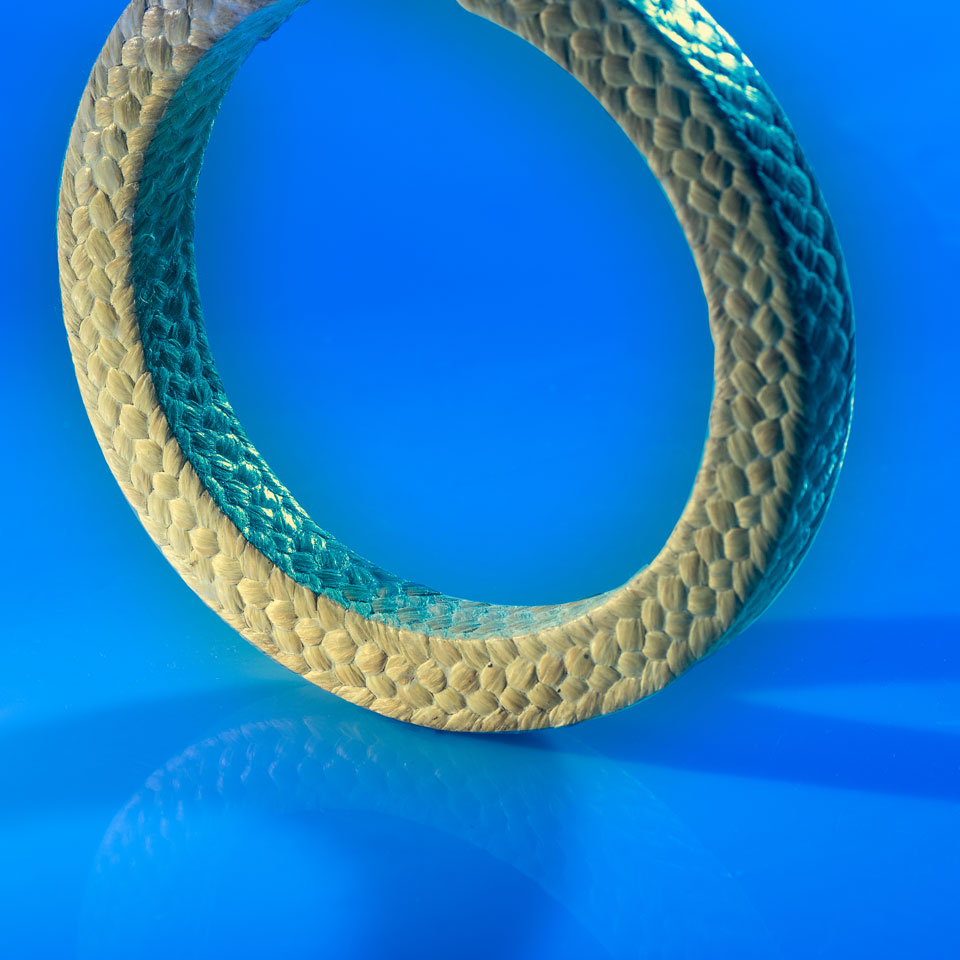

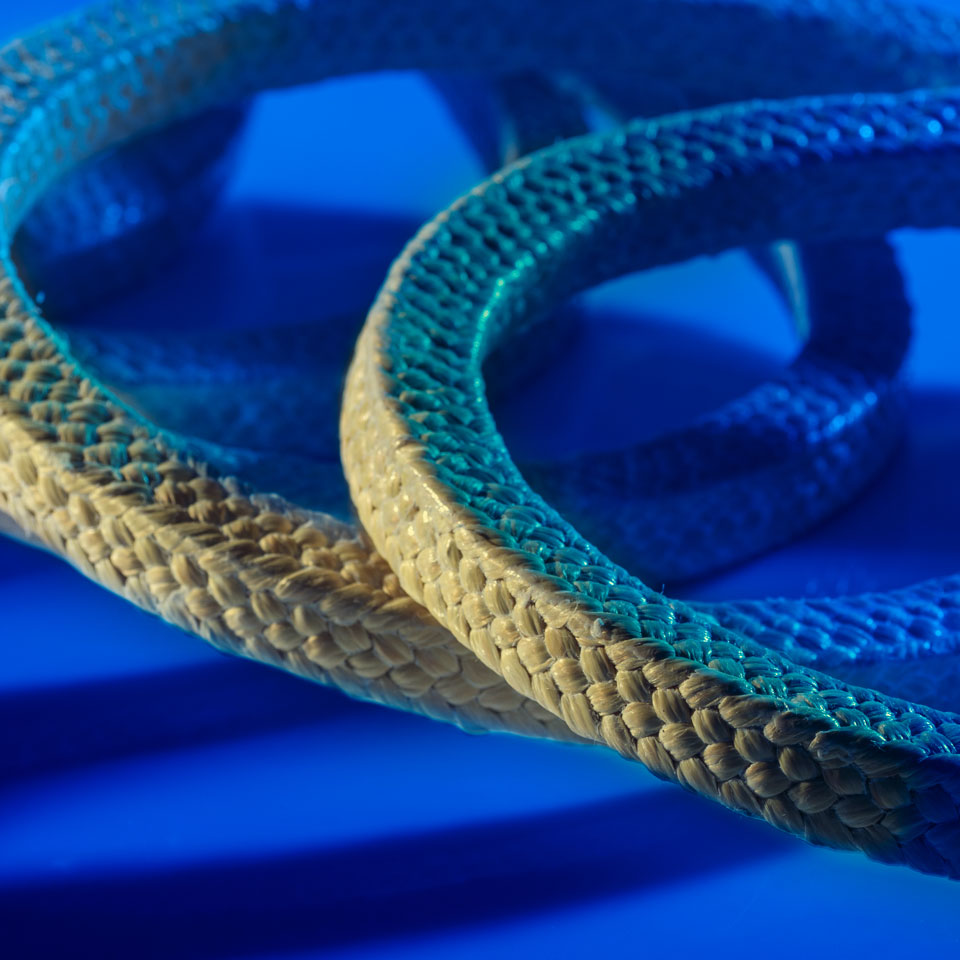

Available in rope and ring form

Service Media and Conditions Magma, massecuite, juice pumps, stock, ash slurry, mud slurry, fly ash water, sewage, highly abrasive bleach or wood pulp, wash water, raw water and turbid water, chemical slurries etc
Temperature -100°C to 280°C
Pressure 200 bar (static), 35 bar (rotary), 200 bar (reciprocating)
Shaft Speed 20 m/sec (rotary), 10 m/sec (reciprocating)
pH 1 to 13
Applications Pump, agitators
