Compression Packing
×

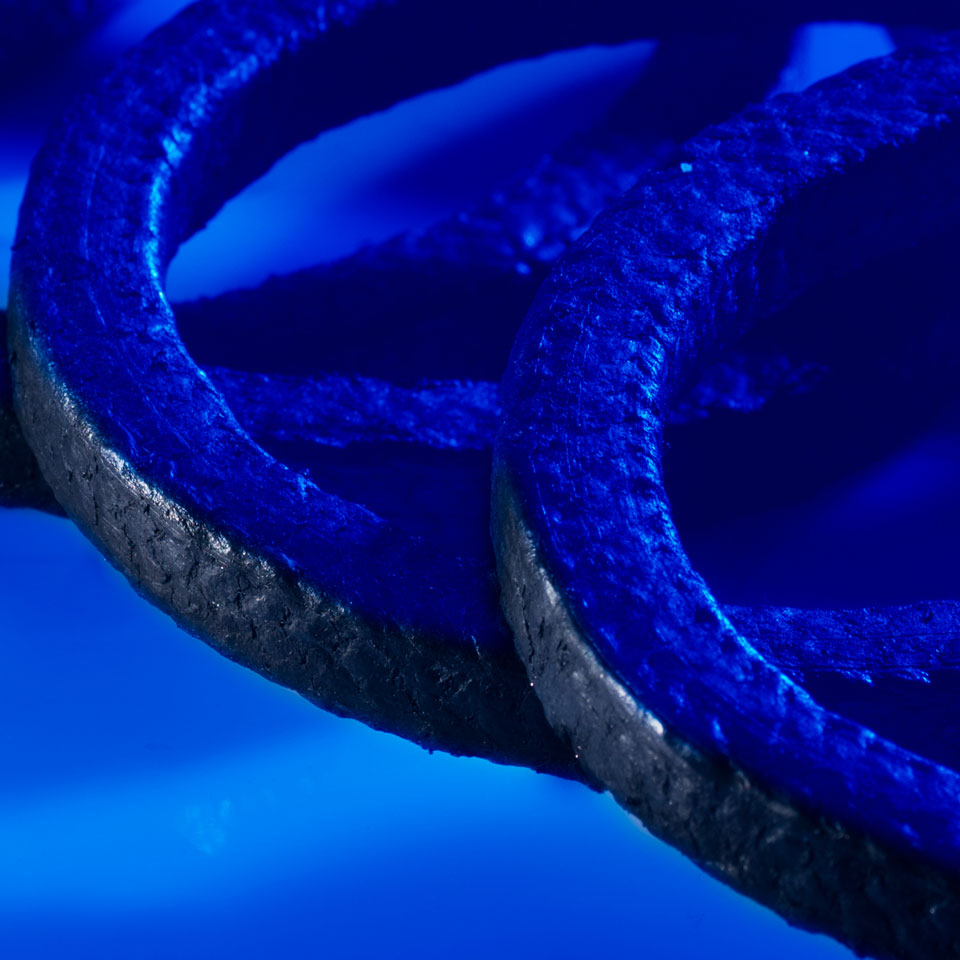

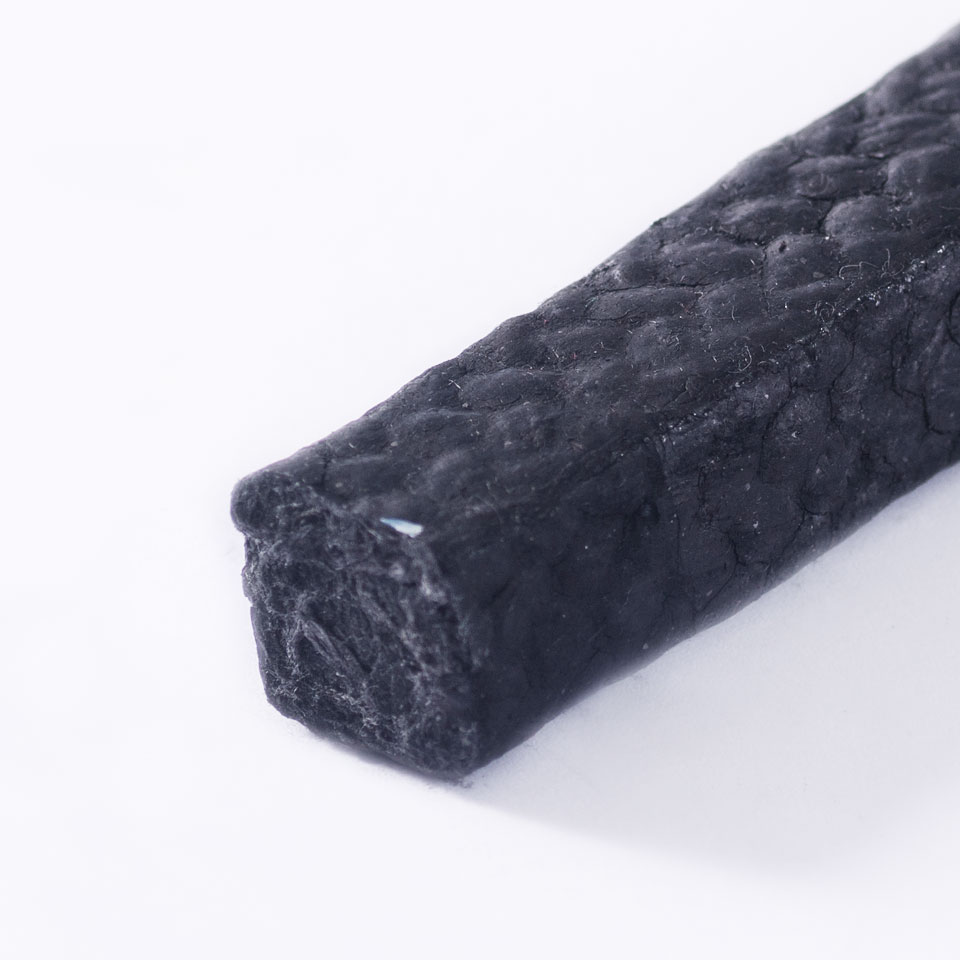

NA 740 PN - Preox Spun Aramid Braided Packing + PTFE Dispersion + Oil
A new generation pre-oxidised aramid staple fibre intimately blended braided packing impregnated with PTFE dispersion and break-in lubricant
- The fibrous nature of aramid staple fibre allows a thorough impregnation of PTFE in each yarn and then in the final packing to give low friction and trouble free operations
- Blending with pre-oxidised increases temperature resistance together with high mechanical stability and low co-efficient of friction
- A dense non contaminating packing with excellent volume stability—requires less frequent gland adjustments
- Superb abrasion resistance without any harm to the parent equipment
Packing is impregnated with corrosion inhibitor to prevent galvanic corrosion
Service Media and Conditions | Juice, stock, cold and hot water, caustic soda, ash slurry, mud slurry, fly ash water, sewage, wash water, raw water, chemical slurries etc |
Temperature | -100°C to 280°C |
Pressure | 100 bar (static), 25 bar (rotary) |
Shaft Speed | 15 m/sec (rotary) |
pH | 1 to 13 |
Applications | Pumps, agitators, mixers, refiners etc |
