Compression Packing
×

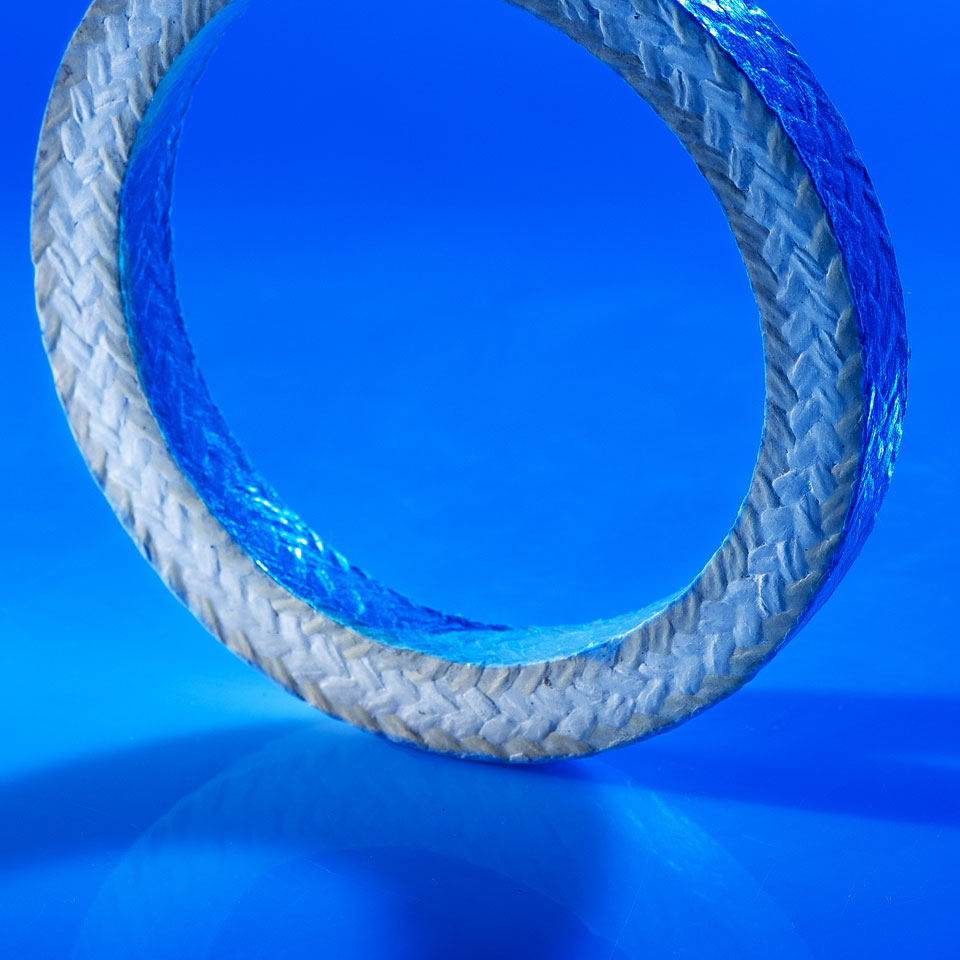

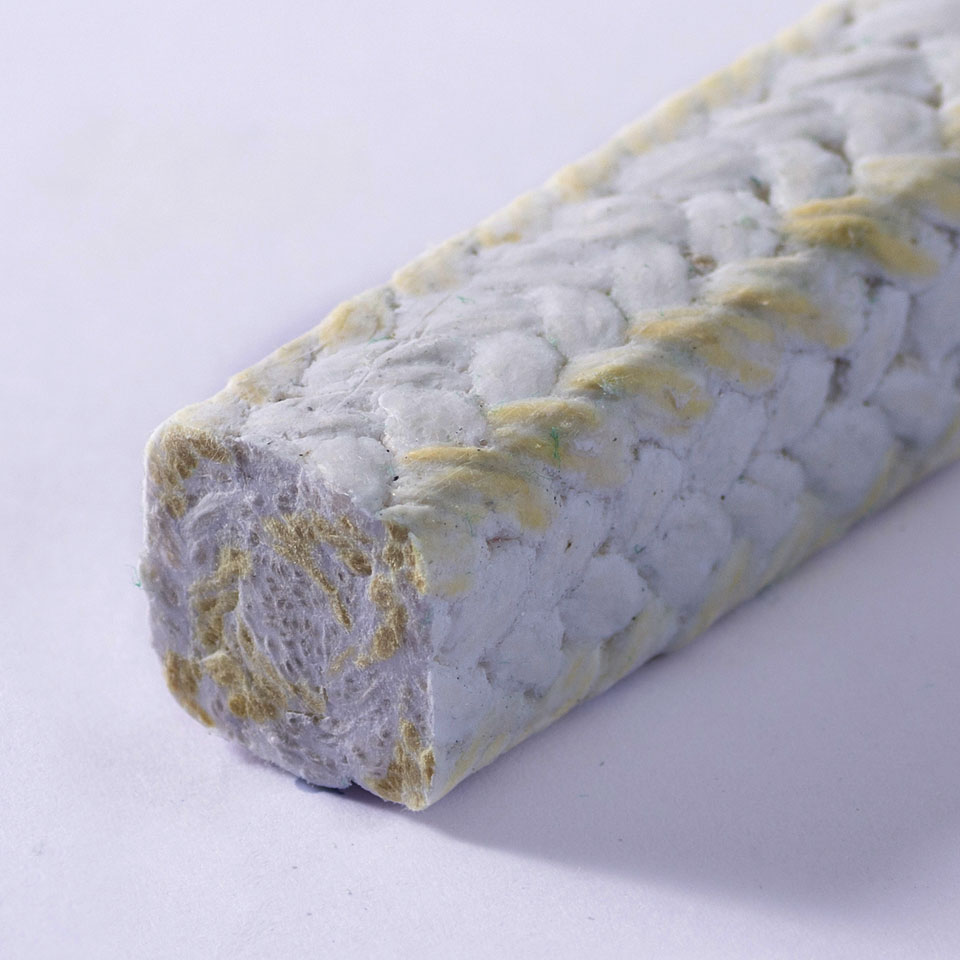

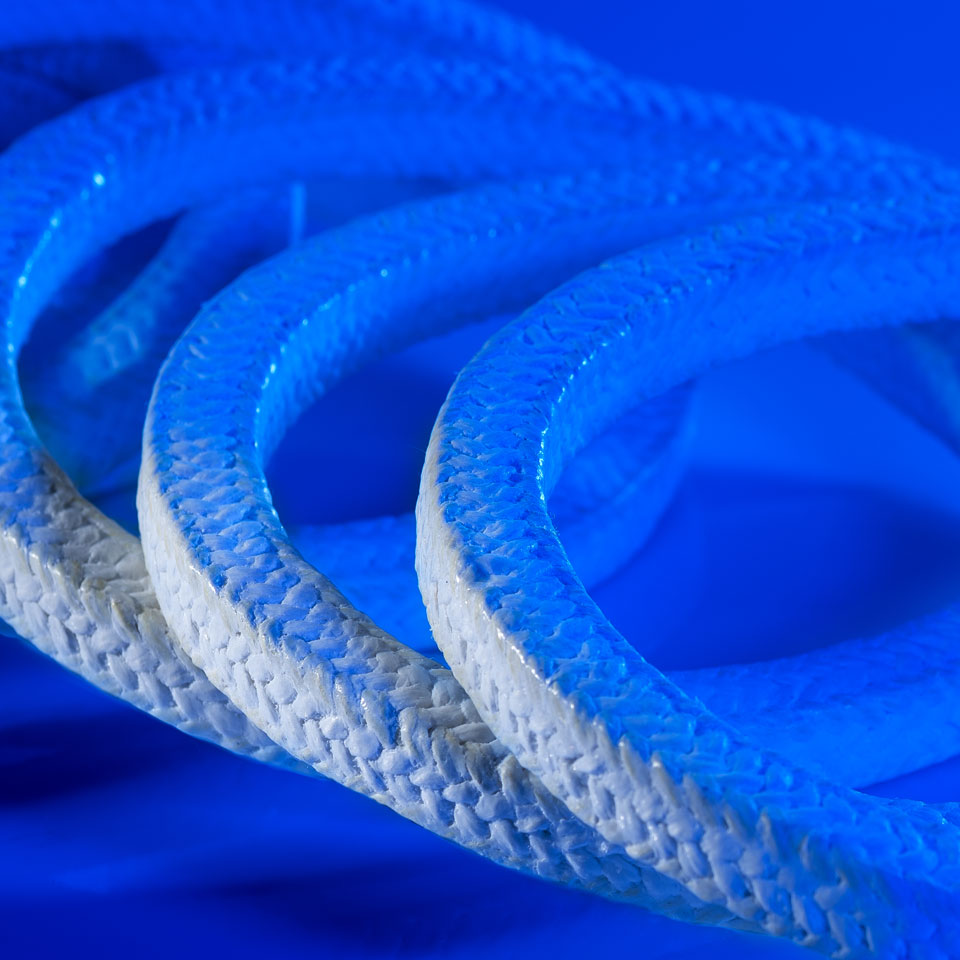

NA 733 - Acrylic Fibre Braided Packing + Para Aramid Fibre + PTFE Dispersion + Oil
Acrylic fibre braided packing with para aramid fibre corners impregnated with PTFE and inert lubricant
- A special purpose packing for slurries with excellent elastic recovery properties
- Para aramid fibre on the corners enhances strength and chemical resistance
- Thorough impregnation of PTFE provides trouble free startup and low friction operation
- Easy to fit, easy to cut, doesn’t heat up much
A non-staining and non-abrasive packing, can be used for high speed applications
Service Media and Conditions | Mining, sugar plant, pulp and paper industry, river water pumping |
Temperature | 260°C |
Pressure | 200 bar (static) |
Shaft Speed | 22 m/s (rotary) |
pH | 1 to 13 |
Applications | Pumps |
