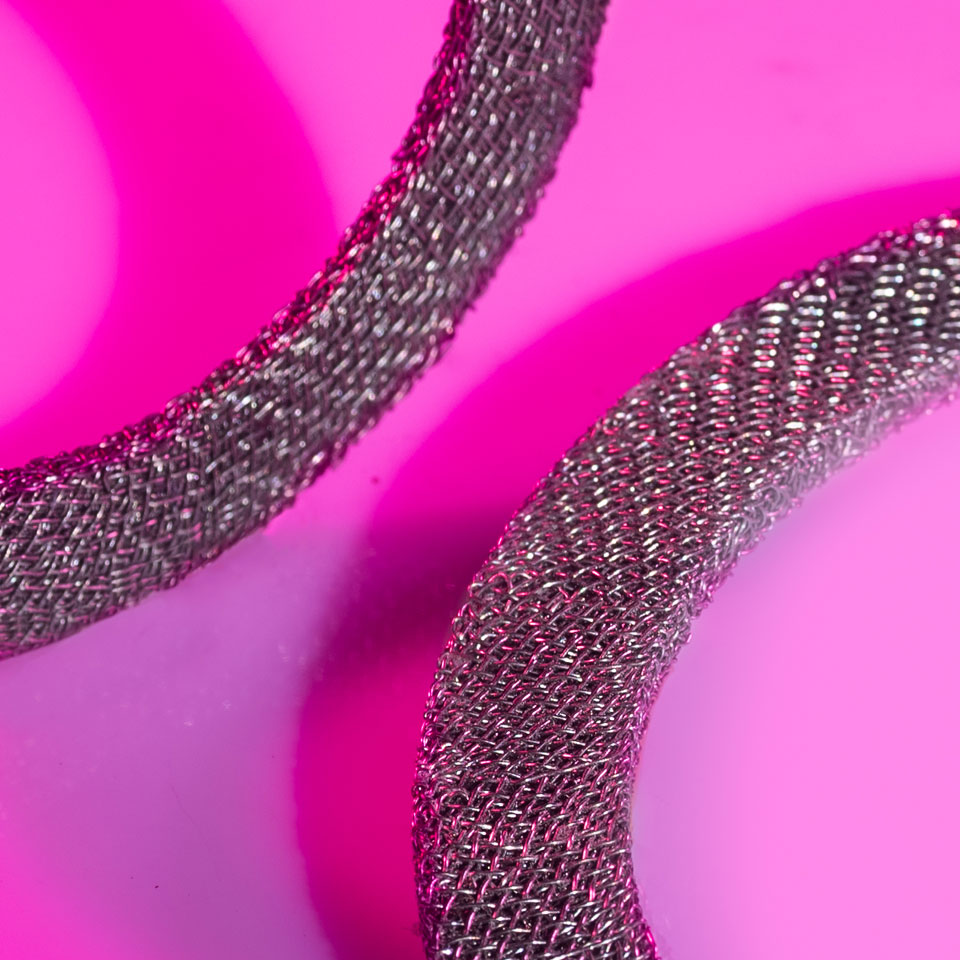

NA 713 - Graphite Gasket + SS Wire Net Spiral Coil

It is manufactured from flexible pure graphite foil with a sandwich reinforcement of SS wire net and further spirally coiled wired net

  • Gaskets are specially designed for boiler, manhole, pump and valve flange
  • Serving as a superior replacement for pure metal and conventional asbestos gaskets

Presence of graphite foil in the core gives the gasket superior sealing properties

Service Media and Conditions Super-heated and saturated steam, hydrocarbons, DM water, mild acid and alkali, fresh and turbid water
Temperature 650°C
Pressure 500 bar (static)
pH 0 to 14
Applications Boiler man hole, pump and valve flanges.
