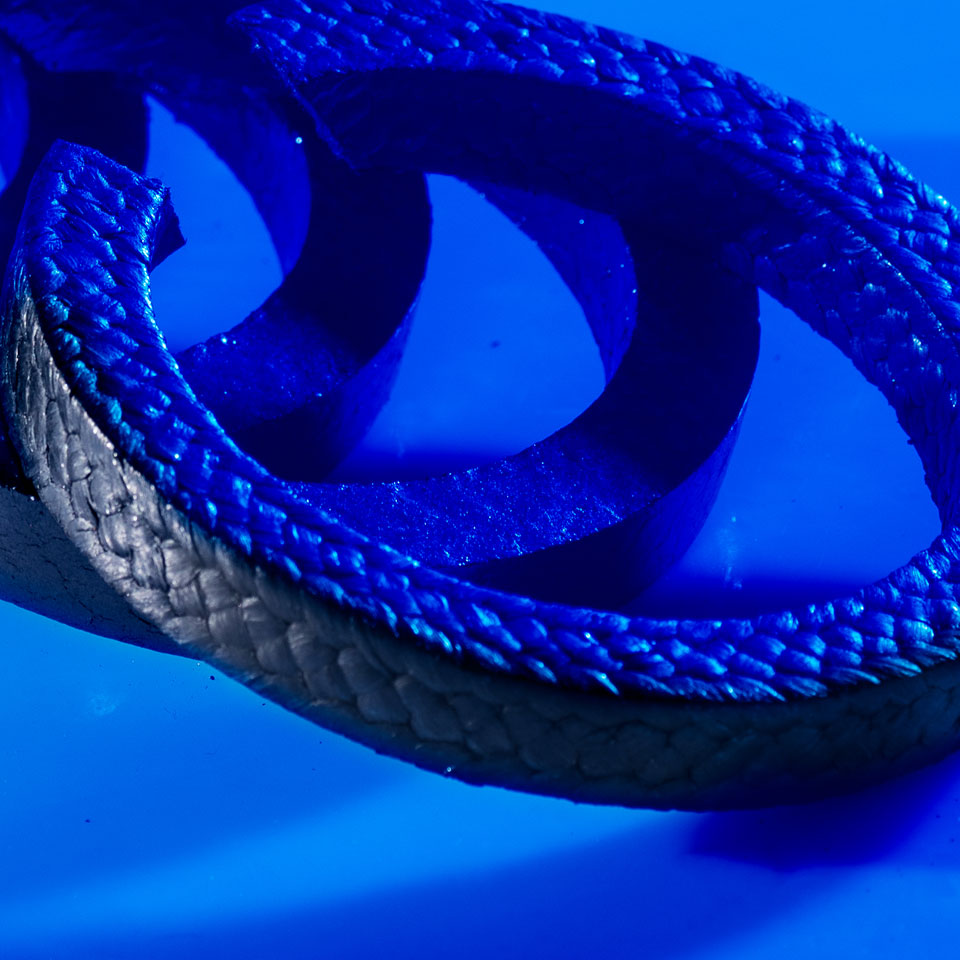

Code 870020 - Expanded Graphite + PTFE Graphited + Aramid Braided Ring Set

Special combination packing set for liquor circulation pump

  • An excellent solution to reduce sealing water in liquor circulation pump
  • PTFE based end rings with a unique reinforcement inside and impregnation with a special anti-frictional, temperature resistance compound enable the packing set to exhibit excellent chemical resistance, heat dissipating, sliding velocity, low co-efficient of friction properties etc, at the same time, the abrasion, pressure resistance and mechanical strength
  • Special intermediate ring to run ‘dry’
  • A soft supple packing, non-abrasive in nature and gentle on the shaft

Ideal for aggressive chemical fluids with the presence of solid particles

Service Media and Conditions Chemical and abrasive slurries, liquor circulation pumps, washers, sewage, solvents, aggressive fluids, black liquor, boiler feed water, hot water, condensate, oils and greases, steam, paper mill applications etc
Temperature -200°C to 260°C
Pressure 30 bar (rotary)
Shaft Speed 20 m/sec (rotary)
pH 0 to 14
Applications Pumps
