Compression Packing

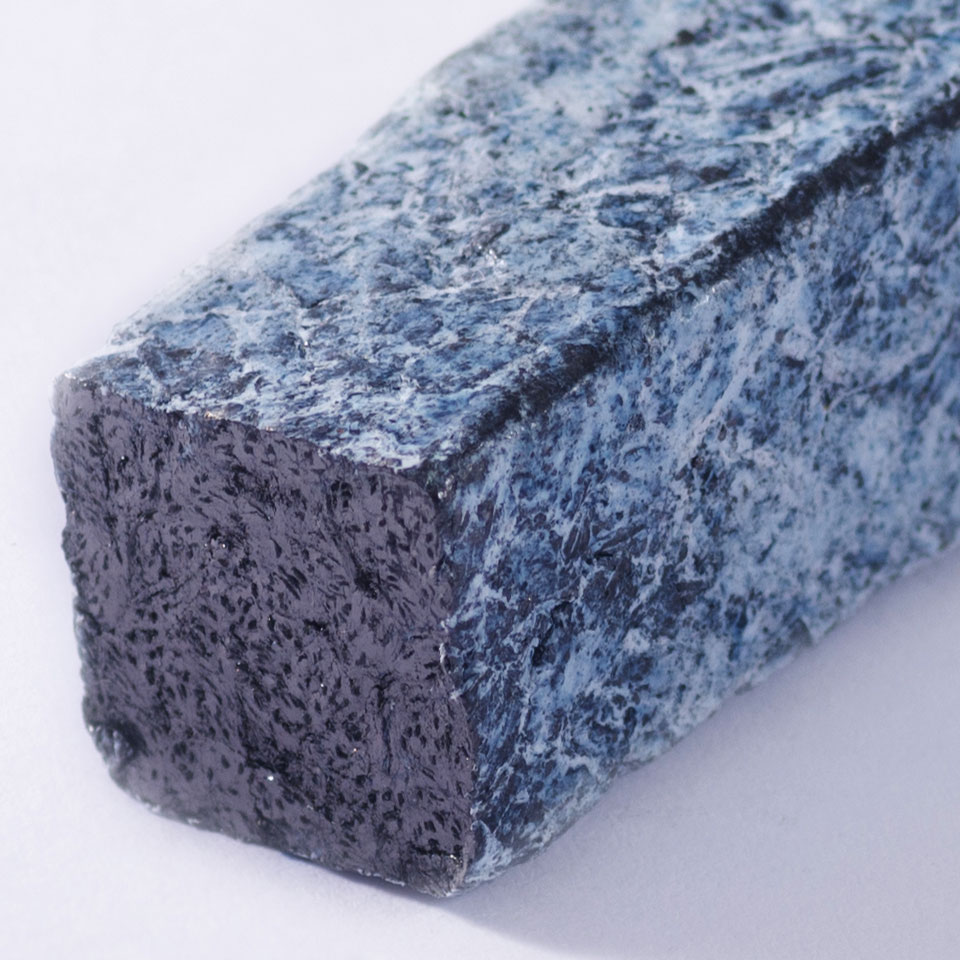

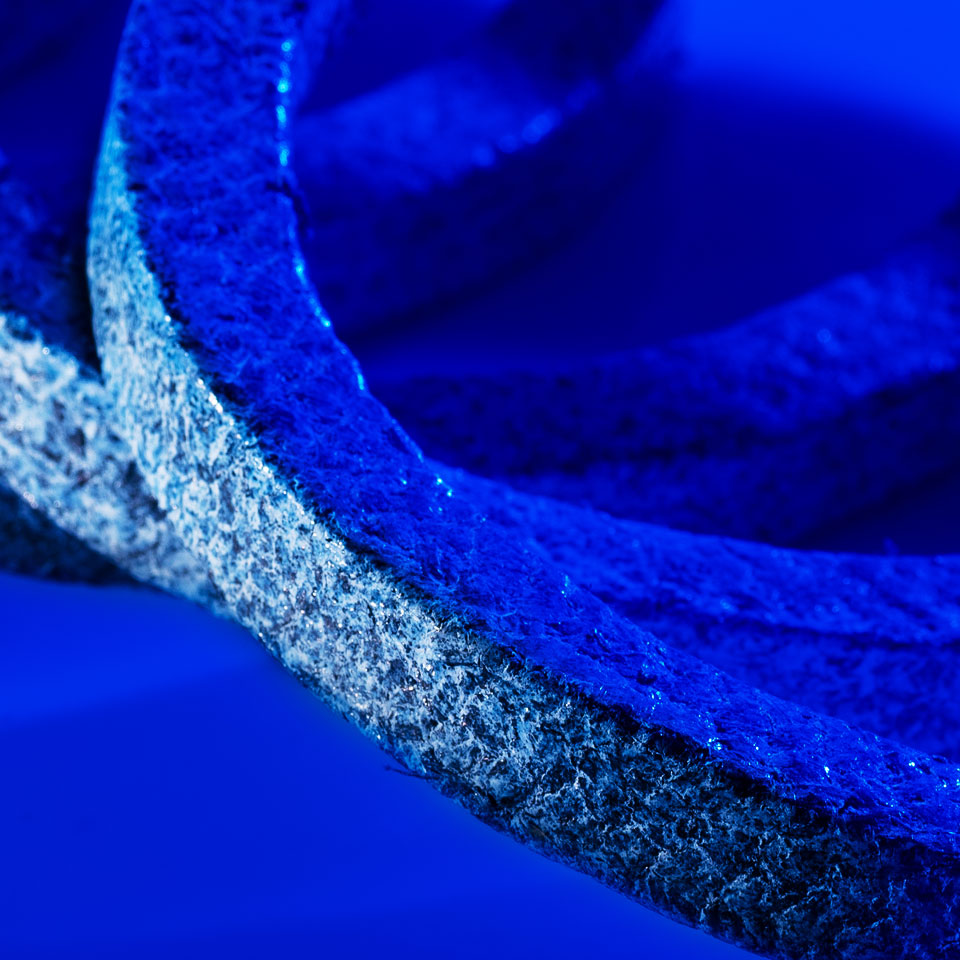

NA 717 - Expanded Graphite Braided Packing + PTFE Dispersion
Expanded pure graphite braided gland packing with a non-metallic reinforcement impregnated with PTFE and inert lubricants
- Low cost expanded pure graphite packing
- Dissipates heat without chemical hardening, resistant to practically all chemicals
- Dense, pliable packing with a high degree of resiliency
- Does not cause shaft wear
- Reduces flush water consumption

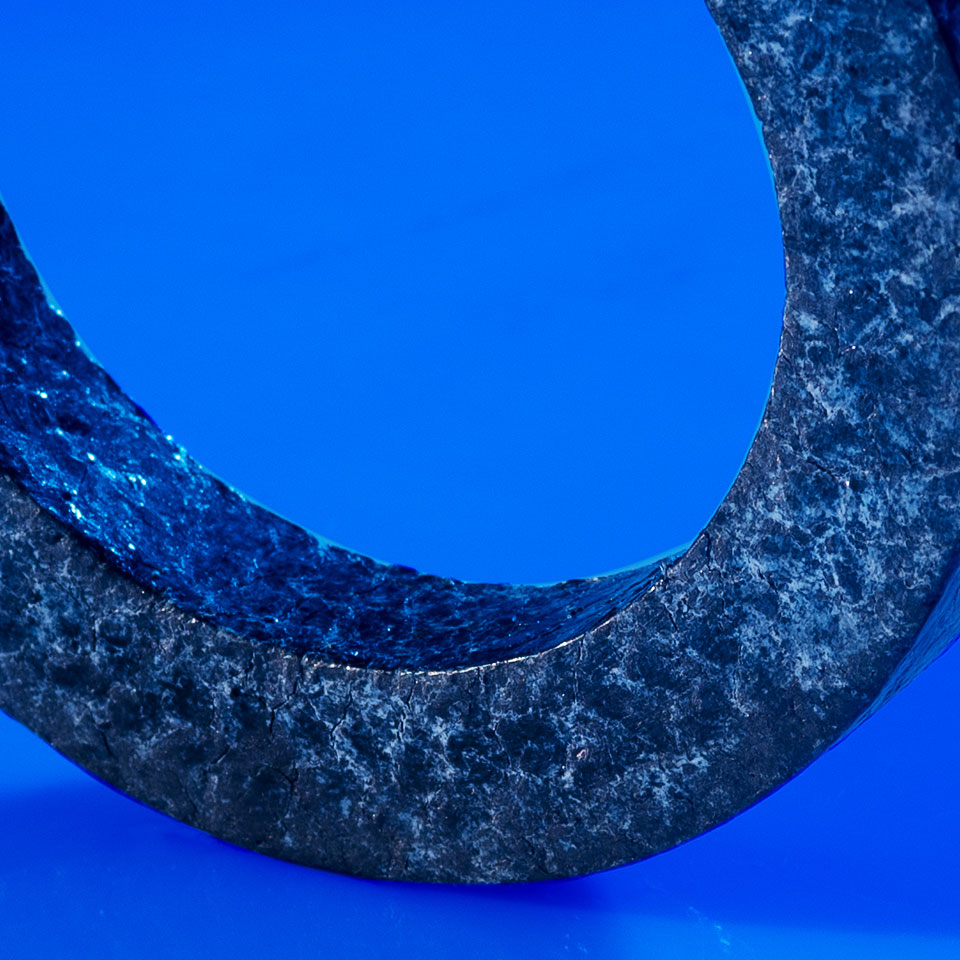

Use of preformed rings recommended for optimum performance
| Service Media and Conditions | DM water and condensate, non-oxidising liquids and gases, dyes and chemicals, lube oil etc |
| Temperature | -200°C to 650°C |
| Pressure | 280 bar (static), 30 bar (rotary) |
| Shaft Speed | 20 m/sec (rotary) |
| pH | 0 to 14 |
| Applications | Pumps, low pressure valves |
