Graphite Sealing Products

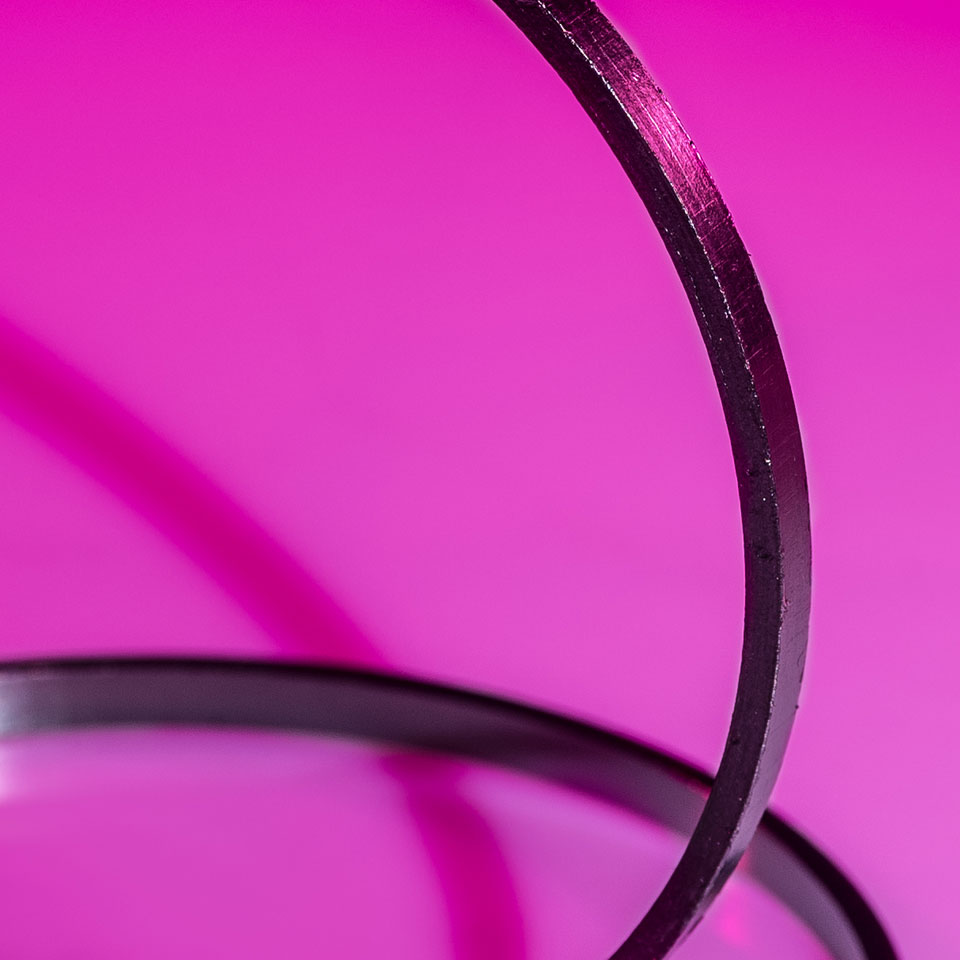

NA 714 - Flexible Graphite Body Seal
Flexible pure graphite die moulded body seals
- High grade flexible graphite die moulded rings in specific dimensions to suit ball valves, trunnion mounted ball valves etc
- The body seals are made accurately with a perfect finish
- High purity of graphite: 99.5–99.9% with low chloride content

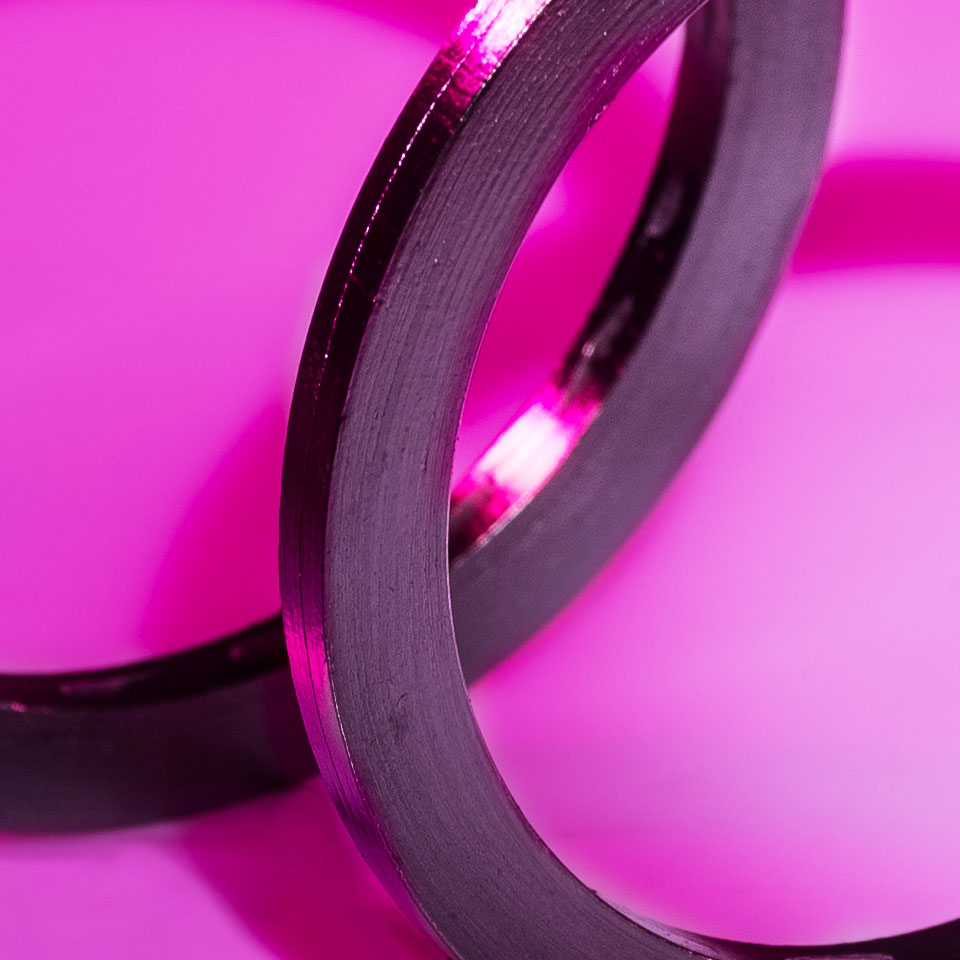

- Also available with SS wire mesh reinforcement inside

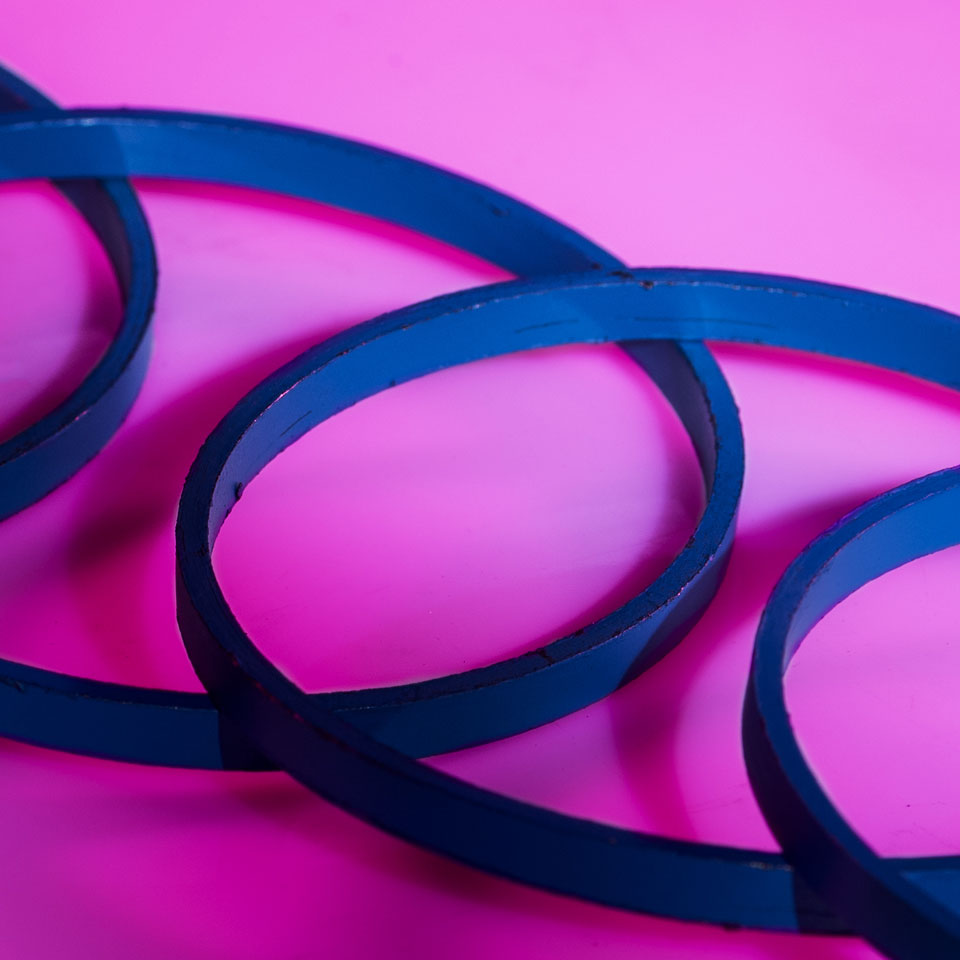

Also available with a coating of food grade PTFE for food and pharmaceutical applications
Service Media and Conditions | Superheated and saturated steam, all non-oxidising liquids and gases, hot ash, hydrocarbons, dyes and chemicals, fuel oil and lube oil etc |
Temperature | -240°C to 650°C |
pH | 0 to 14 |
Applications | Trunnion mounted ball valves |
