Graphite Sealing Products

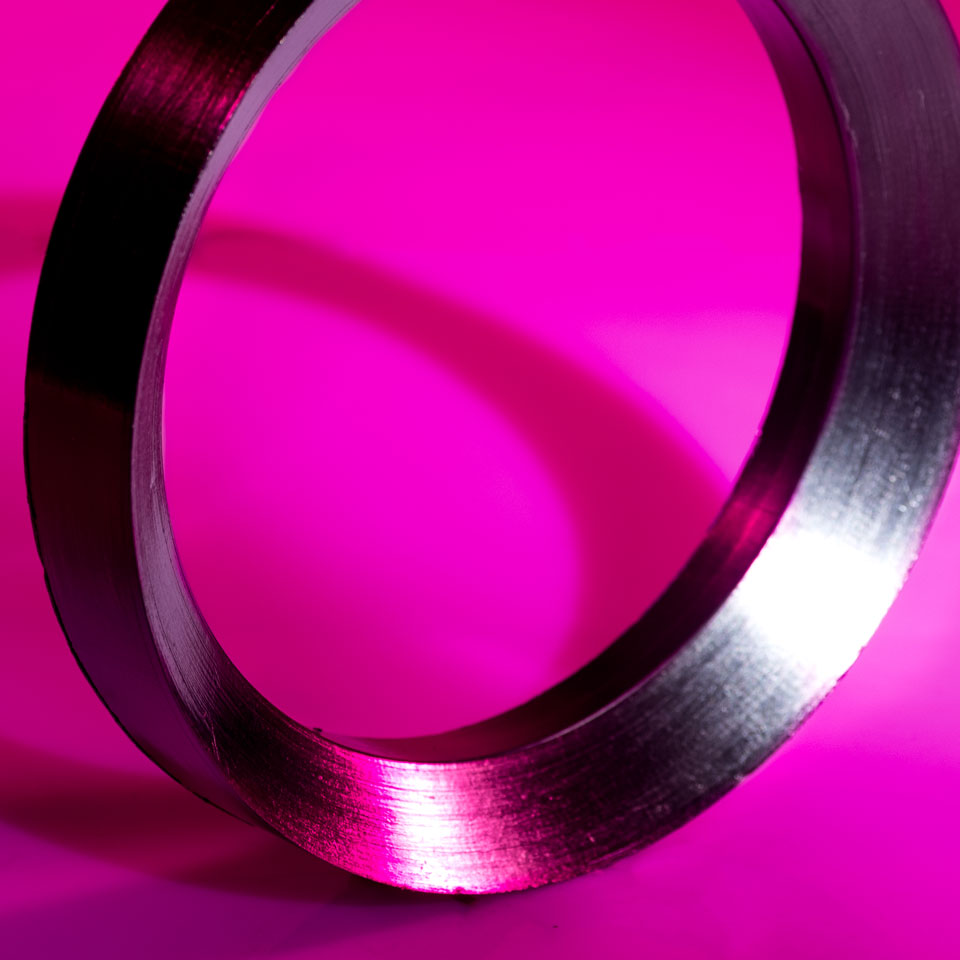

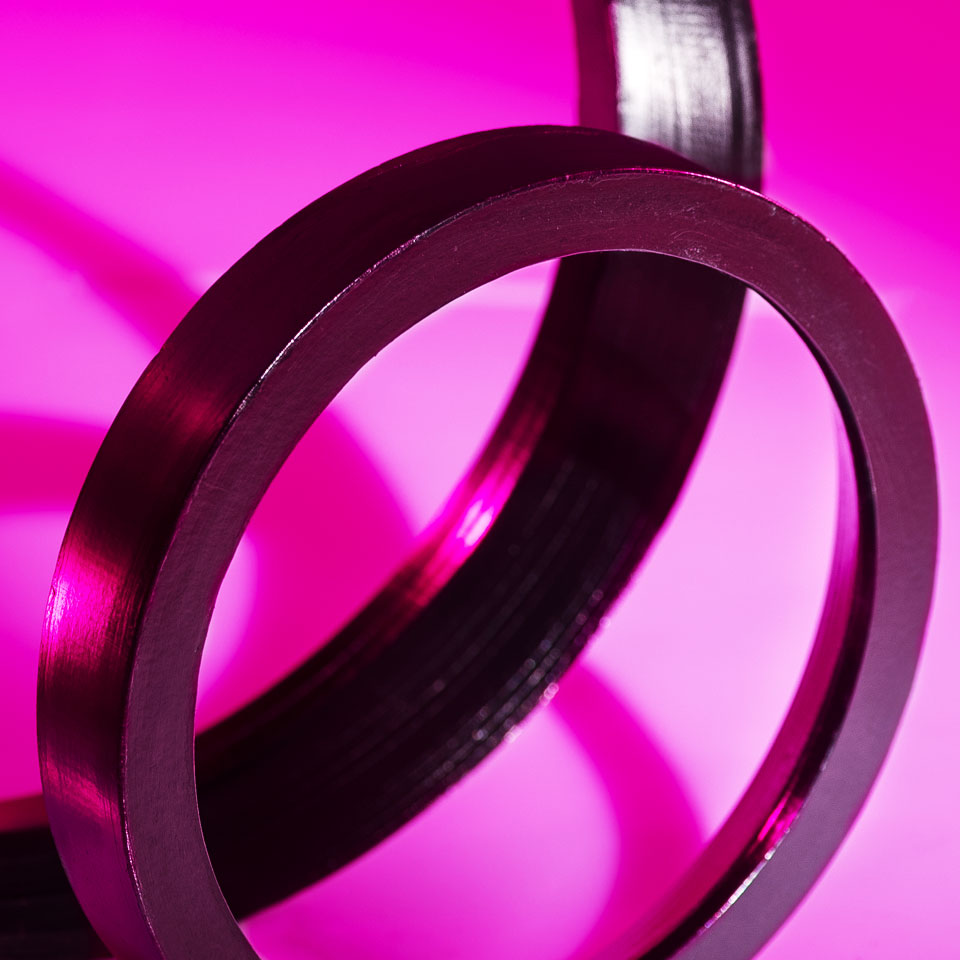

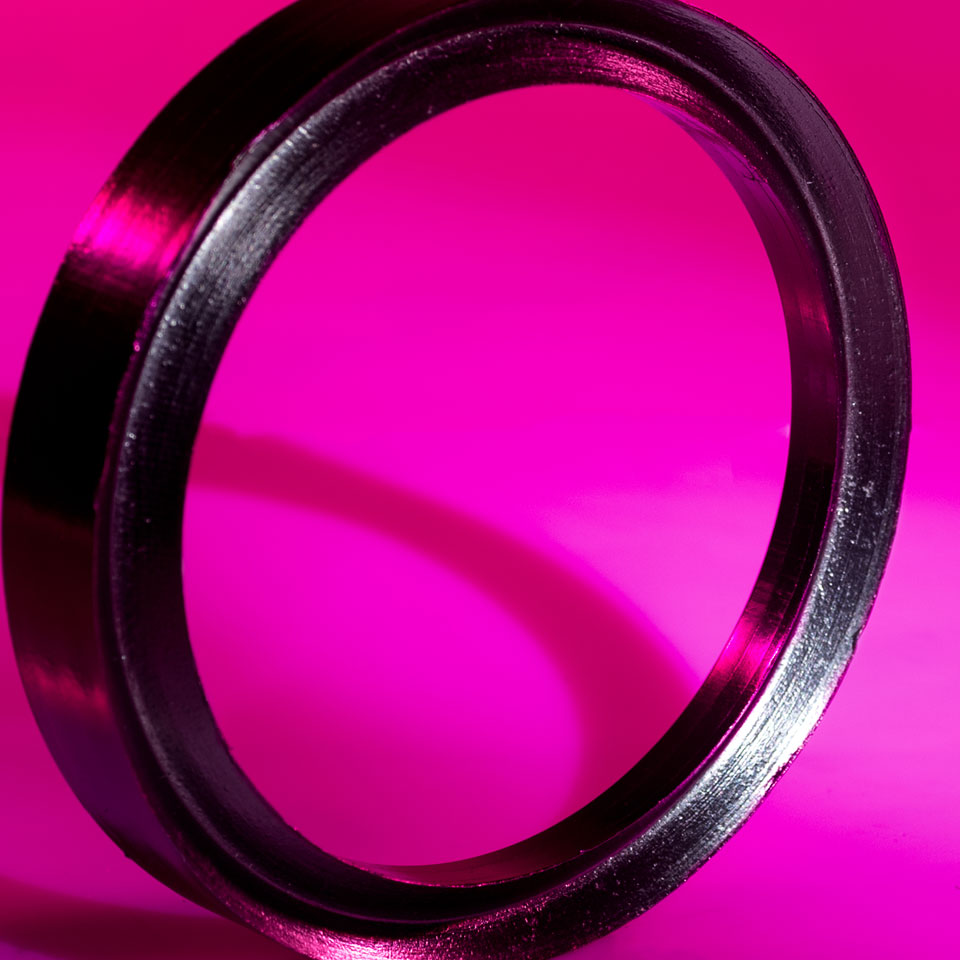

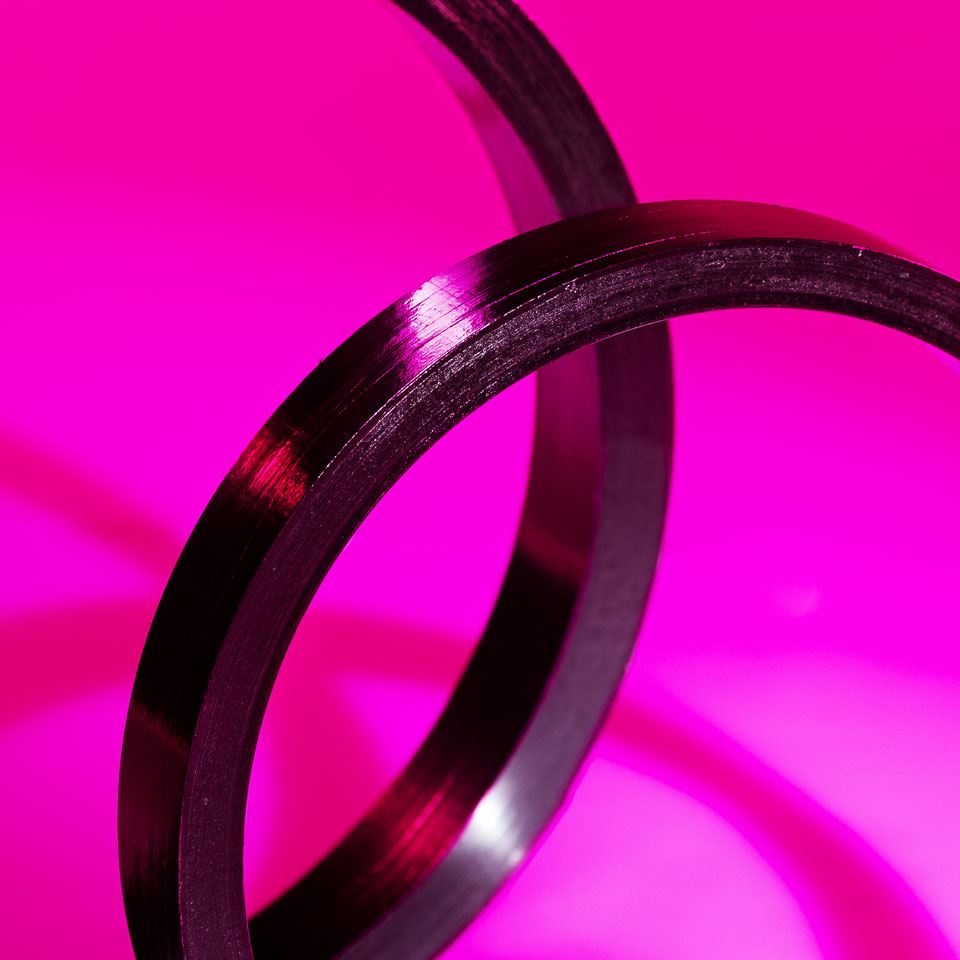

NA 710 Pressure Seal Ring - Flexible Graphite Sealing Ring + SS Reinforcement
Flexible pure graphite pressure seal ring/self sealing ring reinforced with SS wire net
- Much better substitute for soft iron gaskets
- Vertical reinforcement of SS wire net provides superb mechanical strength
- Does not damage parent equipment
- Approved by a host of valve makers
All types of cross-sectional profiles available
| Service Media and Conditions | Superheated and saturated steam, all non-oxidising liquids and gases, hydrocarbons, dyes and chemicals, fuel oil and lube oil etc |
| Temperature | -240°C to 650°C |
| Pressure | 500 bar (static) |
| pH | 0 to 14 |
| Applications | Valve bonnets |
